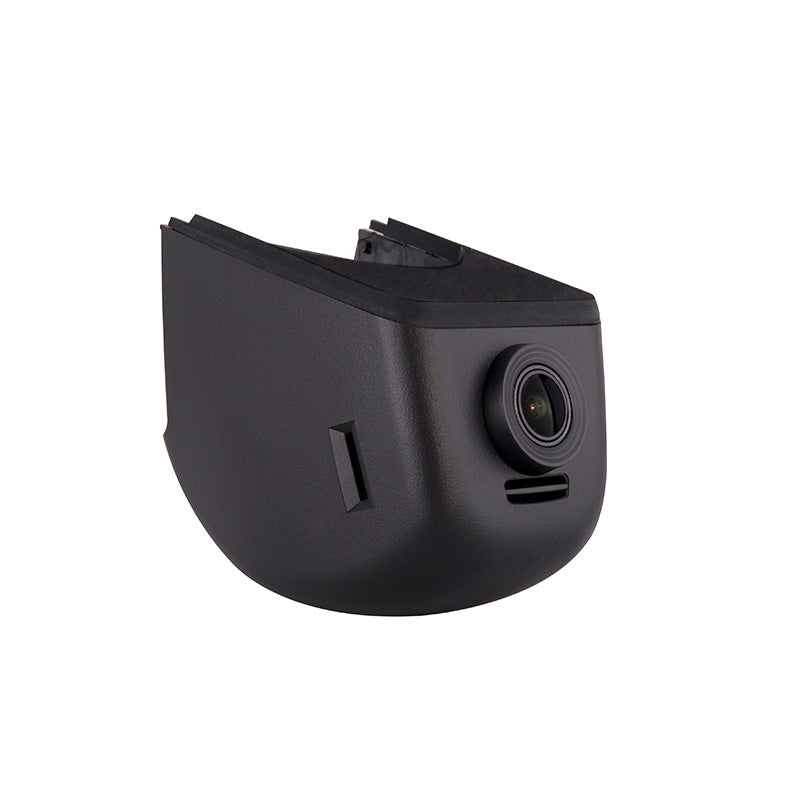

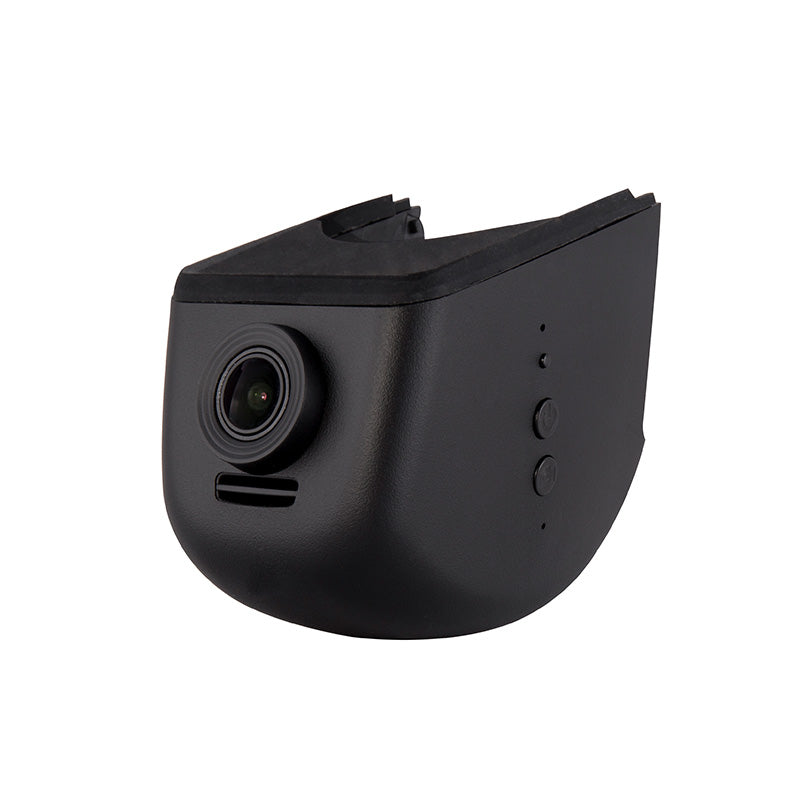

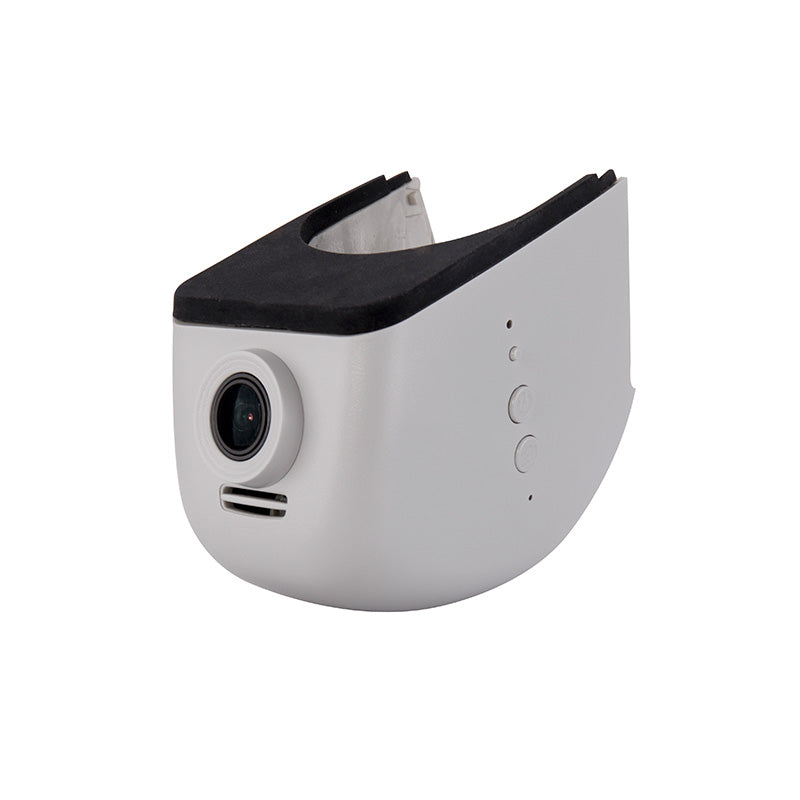

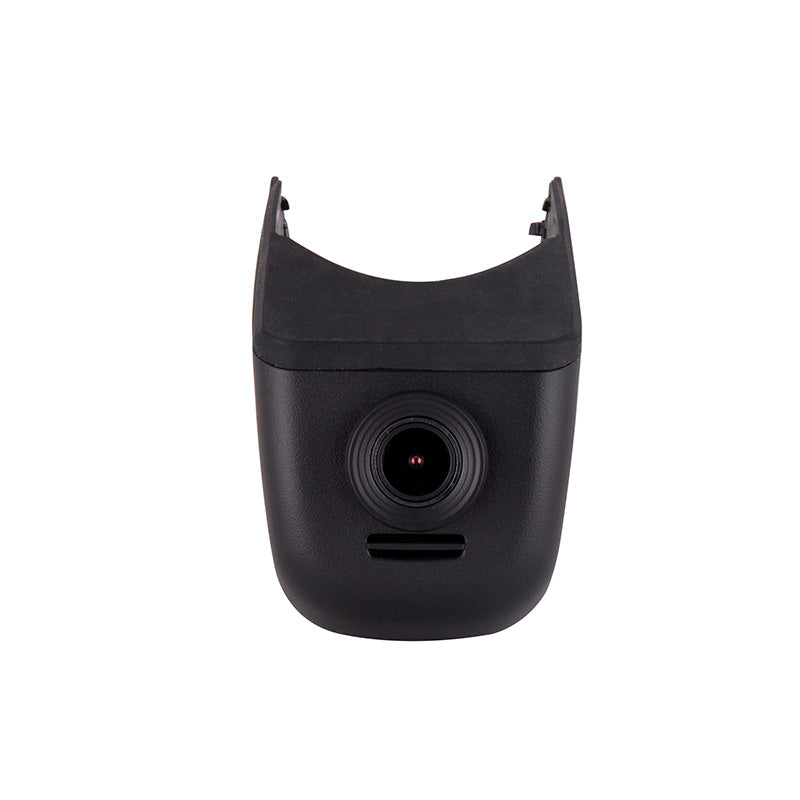

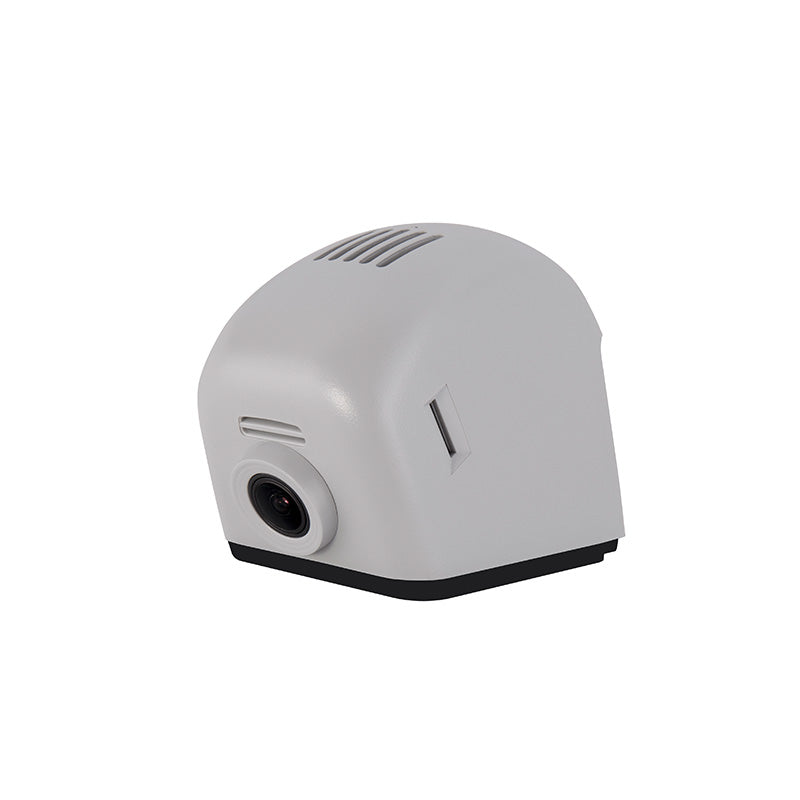

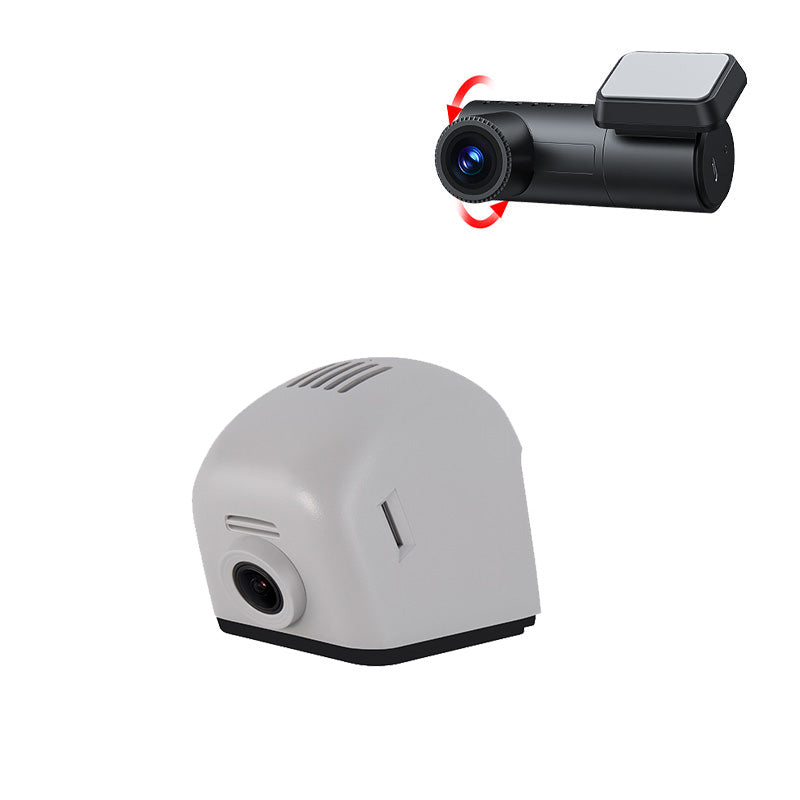

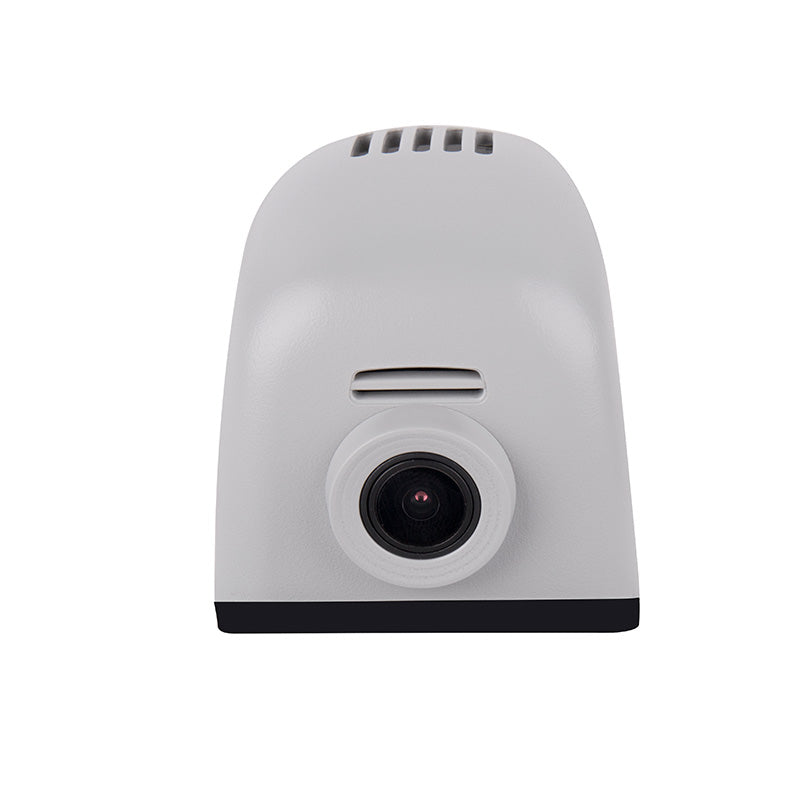

A32/G32 Dashcam 100% Factory Fitted Audi Models
A1: Audi A1 sportback 2019; Audi A1 Sportback Adrenalina 2024;
A3: Audi A3 Sportback E-Tron 2017; Audi A3 sportback 2021;
A4: Audi A4 Allroad 2017; Audi A4 B9 2016; Audi A4 B9 2018;Ā Audi A4 2018-2019; Audi A4 2022; A4 Sedan 2023; 2017 Audi A4 S-line Quattro; 2023 Audi A4; 2018 Audi A4 Quattro Premium Plus S-line
A5: Audi A5 Base 2009; Audi A5 Sportback 2013; Audi A5 F5 2018; 2020 Audi A5; Audi A5 Sportback 2022;
A6: 2021 Audi A6 Avant Sport 40 TFSI MHEV S-A;Ā Audi A6 2022; Audi A6 black edition 2023;
Q2: 2017 Audi Q2;
Q3: Audi Q3 2019; Audi Q3 f3 2020; Audi Q3 2020; Audi Q3 2022; Audi Q3 sportback 2023; Audi Q3 2024; 2016 Audi Q3 Premium Plus; 2024 Audi Q3 1.5 tfsi;
Q5: Audi Q5 YF Year 2017; Ā AUDI Q5 2018; Audi Q5 Quattro 2020; Audi Q5 2021; Audi Q5 Sportback 2022; Audi Q5 Premium plus 2022;Audi Q5 2023; Q5 Sportback 2024; Audi Q5 2.0T Quattro 2020; 2024 Audi Q5
Q7: Audi Q7 2016 Sline; Audi Q7 2017; Audi Q7 e-tron 2018; Audi Q7 2018 Premium Plus; Audi Q7 2019;Ā AUDI Q7 S-LINE 2020; Audi Q7 2021; Audi Q7 2021; Audi Q7 2022; Audi Q7 3.0 Premium Plus 2022; Audi Q7 Prestige 2023; Q7 3.0T Premium 2023; Audi Q7 2024; Audi Q7 2025; Audi Q7 2011; 2017 Audi Q7 Prestige trim; Audi Q7 Premium Plus 2017; AUDI Q7 S-LINE VOR 50 TDI MHEV Quattro 2023
Q8: Audi Q8 3.0T Quattro Premium Plus 2019; Q8 2020; Audi Q8 2021; Audi Q8 Etron 2024; Audi Q8 2019
S3: Audi S3 Premium Plus 2018;Ā Audi S3 2023 ; Audi S3 2024; Audi S3 Premium Plus 2017
S5: Audi S5 Sportback Premium 2022;
S6:Ā Audi S6 2020;
SQ5: SQ5 2018; Audi SQ5 2020-2021;
SQ7: Audi SQ7 2017; Audi SQ7 2018; Audi SQ7 Prestige 2021; Audi SQ7 2025; Audi SQ7 2021
SQ8: Audi SQ8 2021; Audi SQ8 2023; Audi SQ8 2024; Audi SQ8 2026;
RS5: Audi RS5 2021;
RS7: Audi RS7 2021; Audi RS7 2022
Audi TT Couple: Audi tt couple 2.0 tfsi mk3 year 2015;
Audi TTS: Audi TTS 2017; Audi TT S Line 2019; Audi TTS 2023;
E-tron: 2021 Audi e-tron suv; 2023 Audi E-tron Chronos Edition; 2024 Audi E-tron GT; Audi Etron 55 2020; 2021 Audi eTron Presige;
etc.,
Porsche: 2021 Porsche Cayenne GTS; 2022 Porsche Cayenne; 2024 Porsche Cayenne; 2022 Porsche 911 4GTS;
Ā

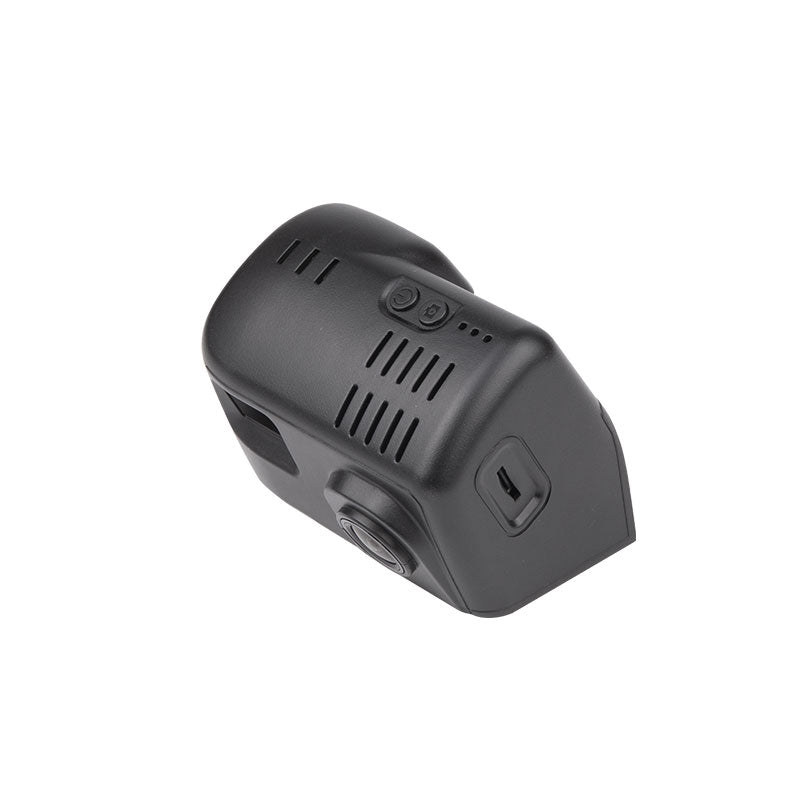

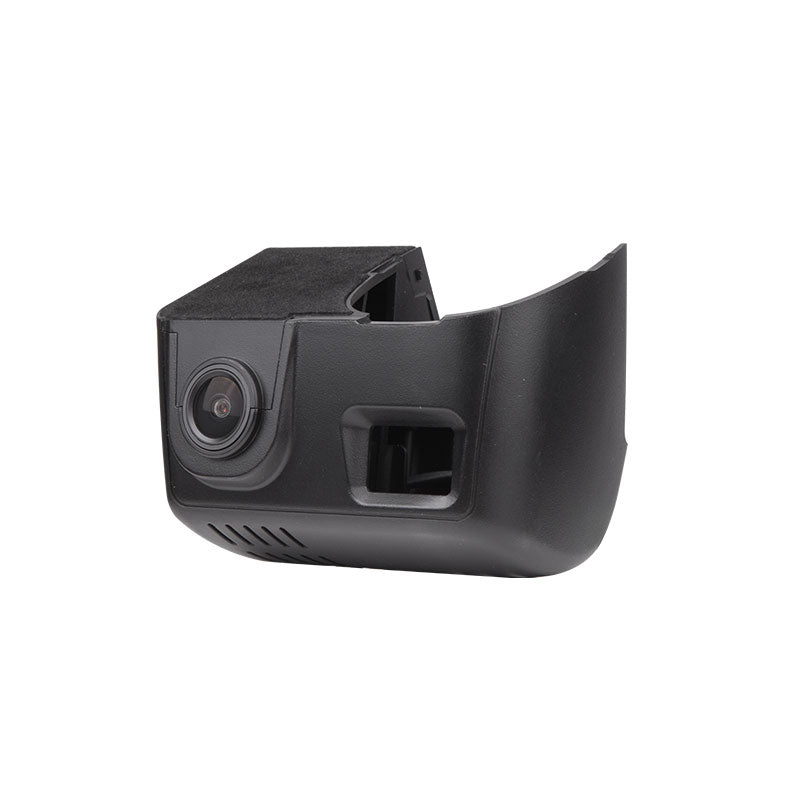

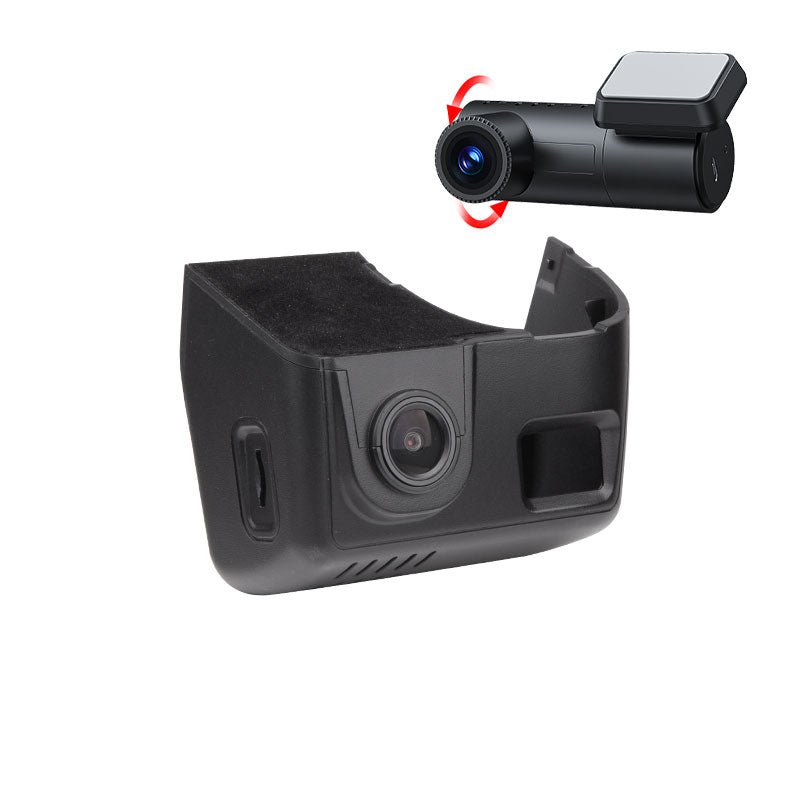

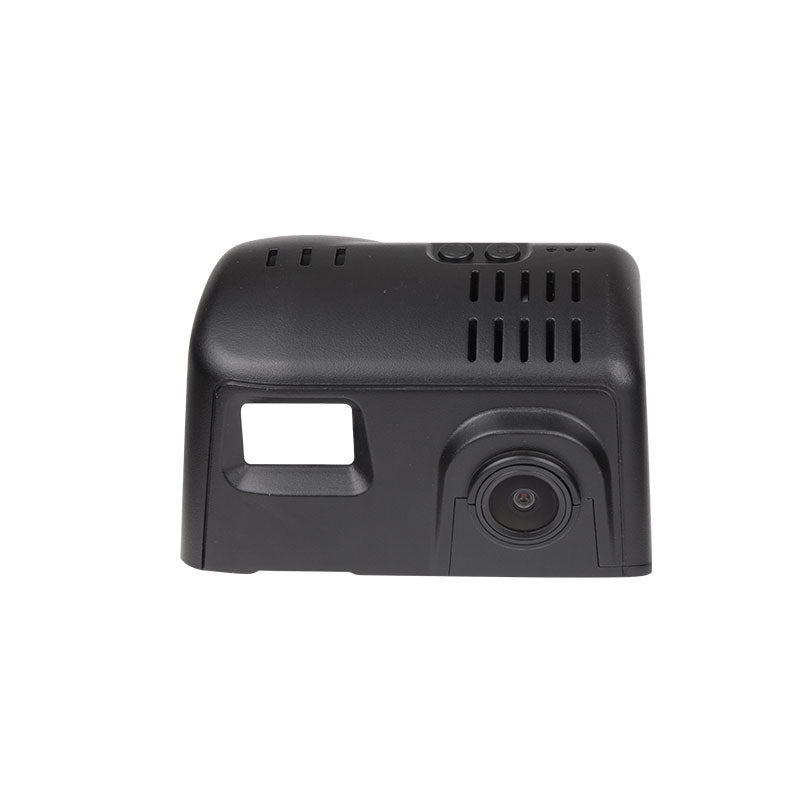

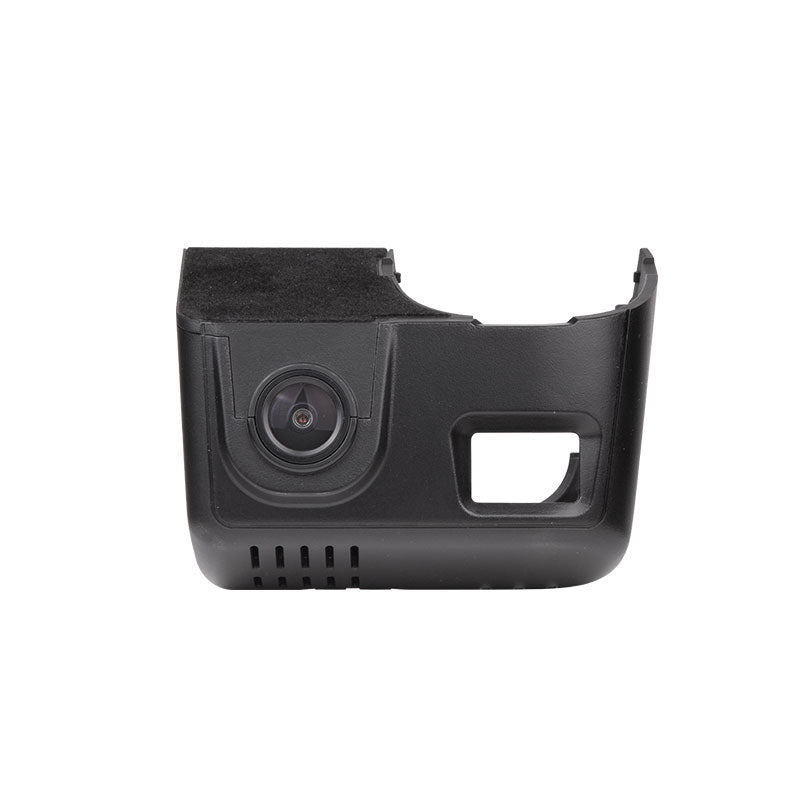

G36 Dashcam 100% Factory Fitted Audi Models
1. When ordering, send us email at [email protected] to tell the vehicle model and year, and pictures of your Audi vehicle rain sensor housing, or pay attention to your email, our customer service will send you an email to confirm. Otherwise, it will be a delayed shipment, thank you for your understanding!
2. We also accept to confirm the correct dashcam model for you before you order, just send us the vehicle model, year, and rear-view mirror casing pictures, and we will send you the correct URL to order.
3. For all integrated dashcam models, 2 types of power cords are provided by default in the package. Plug and play cable and fuse box power supply cable. You can choose one according to your preference.
4. Wiring-free power supply(plug-and-play cable connection). Some car models do not support parking monitoring. If you need the parking monitoring function, please use the fuse box power cord for the power supply.
Can withstand extreme temperatures ranging from -20ā to 65ā. It could prevent the risks of overheating and ensure the life duration as well as the reliability of the dash camera.
Built in microphone and speaker to capture high quality audio clear without distortion. Don’t want to record voice? One press to turn microphone off.
Wide angle of both front and rear cameras helps you capture more details in the events.
ProductĀ Specification
| Model No | A32-1CH-2KĀ | A32-1CH-4KĀ | A32-2CH-4K |
|---|---|---|---|
|
Channel |
Front Cam only | Front Cam only | Front 4K & Rear 2KĀ |
|
Processor |
NT96675 | NT96565 | NT96560 |
|
Screen |
/ | / | / |
|
Lens MaterialĀ |
2G4P+IR waterproof | 2G4P+IR waterproof | 2G4P+IR waterproof |
|
Ā Aperture |
F1.4 | F1.5 | F1.5 |
| Lens AngleĀ | diagonal 145Ā° | diagonal 145Ā° | diagonal 145Ā° |
| Max Resolution | 2560*1600 | 3840*2160 | 3840*2160 |
| Encoding Type | H.264 | H.264 | H.264 |
| Video Format | H.264encodingļ¼ TF format storage | H.264 encoding, MP4 format storage | H.264encoding, TF format storage |
| Effective Pixel | 5 million pixel | 8 million pixel | 8 million pixel |
| Picture Format | JPEG | JPEG | JPEG |
| Recording Mode | 1min/3mins/5mins/loop recording | 1minļ¼3minsļ¼5minsļ¼Loop recording | 1min/3mins/5mins/loop recording |
| Storage | TF cardļ¼Class 10 or above, max support 256G) | TF card (Class 10 or above, maximum support 256G) | TF cardļ¼Class 10 or above, max support 256G) |

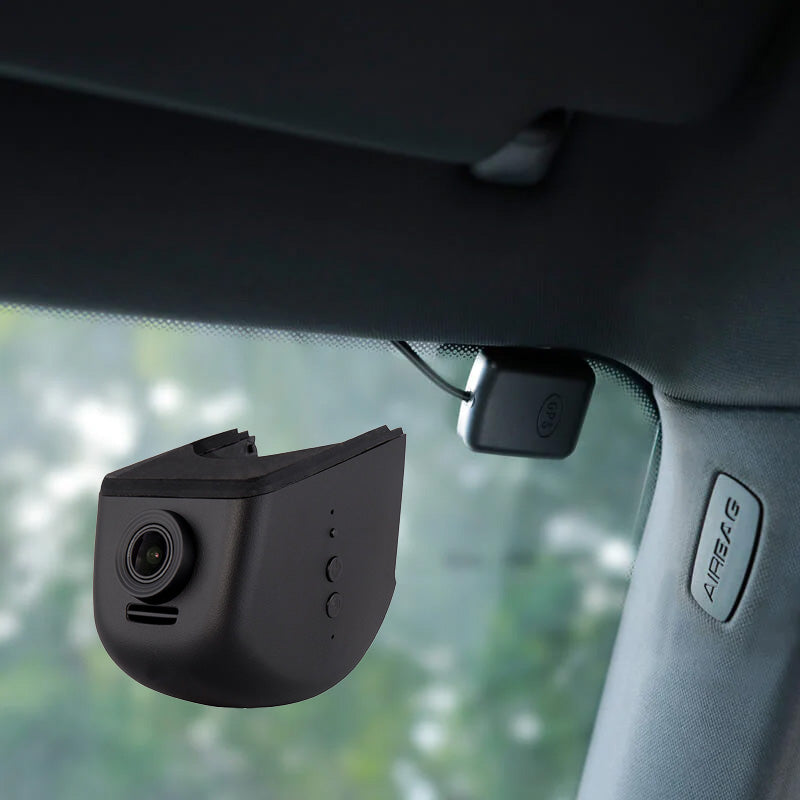

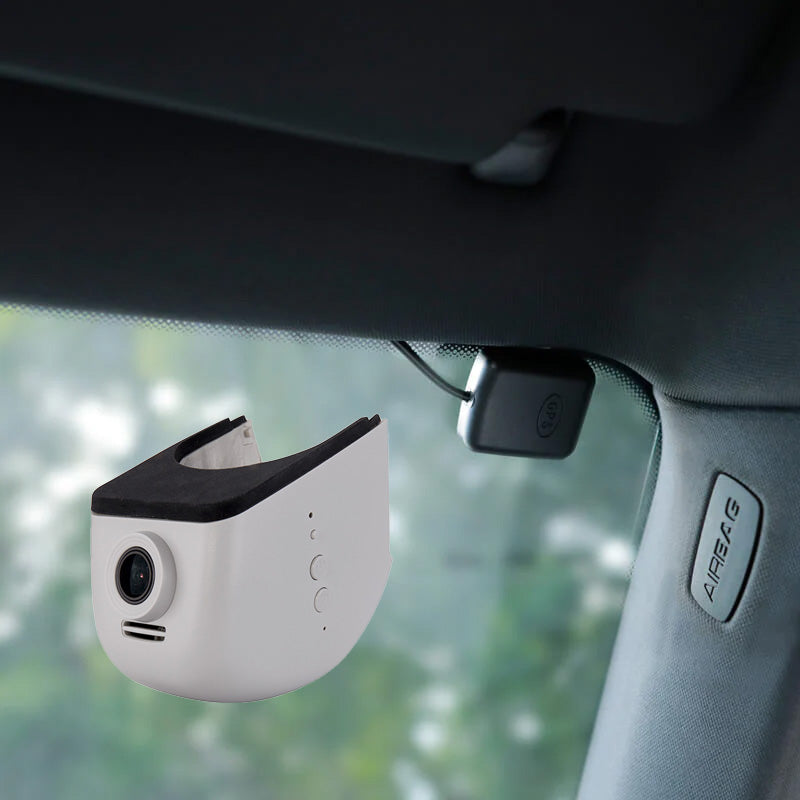

| Support,external GPS optional | Supported, external GPS optional | Supported, external GPS optional | |
| Wireless Connection | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac |
| Collision Detection | Triaxial accelerometer | Three-axis accelerometer | Triaxial accelerometer |
| Horn | 8Ī©1W | 8Ī©1W | 8Ī©1W |
| Parking Monitoring | Start recording 20s after collision | Recording starts 15 seconds after collision | Start recording 20s after collision |
| Start-up Time | About 10 Seconds | About 10 seconds | About 10 Seconds |
| Working Voltage | DC12V | DC12V | DC12V |
| Working Currency | 250MA Ā±10MA | 250MA Ā±10MA | 250MA Ā±10MA |
| Operating Temperature | -20ā-65ā | -20ā-65ā | -20ā-65ā |
| Storage Temperature | -30ā-85ā | -30ā-85ā | -30ā-85ā |
| Front Cam Installation | Plug-and-Play or Hard-wiring Both Support | Plug-and-Play or Hard-wiring Both Support | Hard-wiring from the front cam |
What is in the Box
Q: What should I do if the dashcam casing is not suitable for my car after I receive and install it?
A: Contact Mercy Lion’s customer services, after we checked it is indeed true that after the customer provided the correct car model, model year, and pictures of the car rearview mirror housing from different angles, the dashcam housing we sent to the customer is still not suitable for installation. Our handling method is as follows:
1. Reconfirm again and re-send the correct dashcam casing to the customer
2. Since the casings of individual models vary from different countries if after re-confirm we do not have a suitable casing, we will give the customer a full refund
Our after-sales service is guaranteed, free of concern to shop on Mercylion shop.
