Product Features
Parking mode (It needs to choose fuse box wire)
4 million high-definition cameras.
24 hours G-Sensor collision detection parking monitoring function.
Adjustable front camera
Front and rear dash cameras
Time large recording function
Ultra-low light night vision
Support low voltage protection function
Working voltage 9-18V, short-circuit protect function
Product Specification
| Model No | A970-2CH (High profile) |
| Channel | 2CH |
| Screen | 2.0 inch 320*240 |
| Processor | NT96675 |
| Image Sensor | IMX307 2M CMOS sensor |
| Lens Material | 2G4P+IR |
| Aperture | F1.4 |
| Lens Angle | diagonal 143° |
| Max Resolution | 1920*1080 |
| Encoding Type | H.264 |
| Video Format | H.264encoding， TF format storage |
| Effective Pixel | 2 million pixel |
| Picture Format | JPEG |
| Recording Mode | 1min/3mins/5mins/loop recording |
| Storage | TF card（Class 10 or above, max support 512G) |
| GPS | Support,external GPS optional |
| Wireless Connection | 802.11b/g/n/ac |
| Collision Detection | Triaxial accelerometer |
| Horn | 8Ω1W |
| Parking Monitoring | Start recording 20s after collision |
| Start-up Time | About 2 Seconds |
| Working Voltage | DC12V |
| Working Currency | 250MA ±10MA |
| Operating Temperature | -20℃-65℃ |
| Storage Temperature | -30℃-85℃ |
| Application Model | Can be used universally |

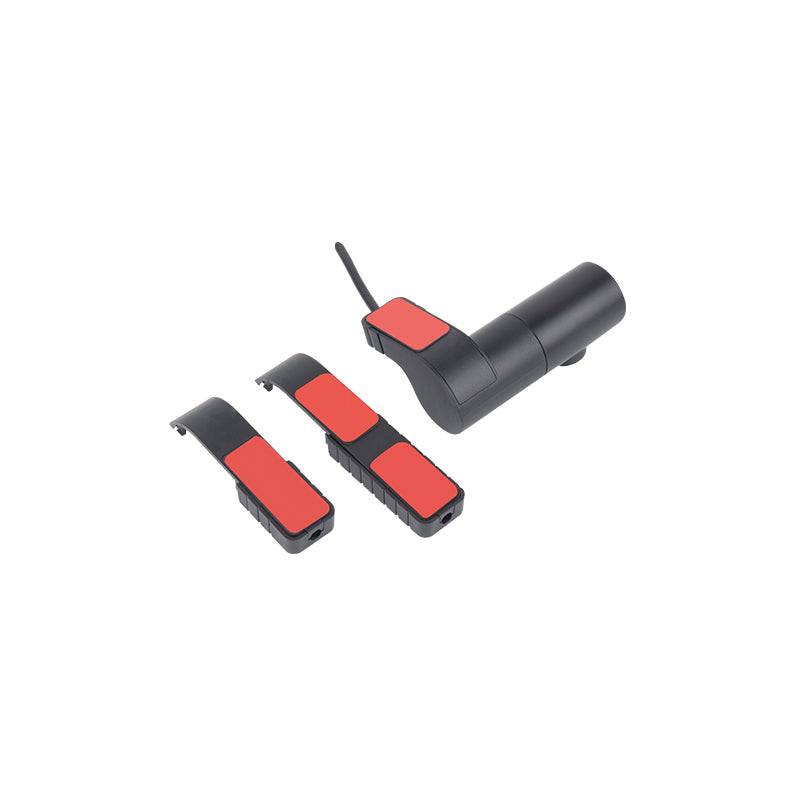

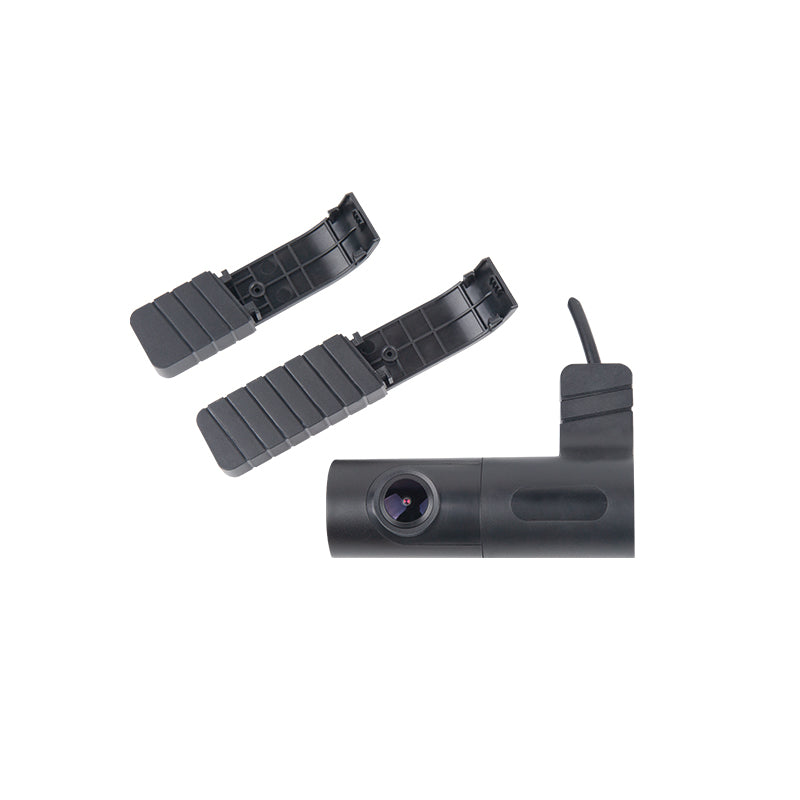

| Rear Camera | C100 |
| Image Sensor | IMX307 2M CMOS sensor |
| Lens Material | 6G+IR |
| Aperture | F/ON 1.8 |
| Lens Angle | diagonal 160° |
| Max Resolution | 1920*1080 |
| Encoding type | H.264 |
| Effective pixel | 2 million pixel |
| Working voltage | DC 5V |
| Working Currency | <150mA |
Packing List
1. Main host x1
2. 3M Sticker bracket x1
3. Wire cover x 1
4. ⃞ Fuse Box Wire x 1 (Optional)
5. C100 camera x1
6. Camera extension cable x1
7. User manual x 1
8. ⃞ Cigarette car charger x 1 (Optional)

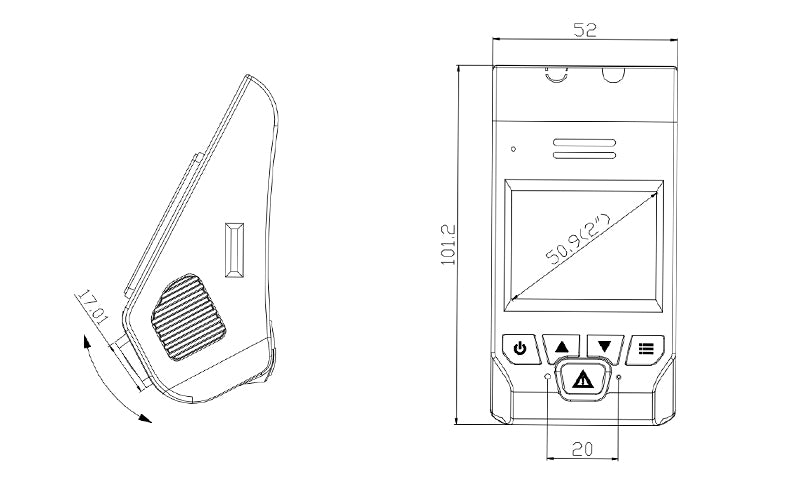

Product Size
| Package Dimension | 22.6*15.9*7.6cm |
| Package Weight | 0.8kg |
