Can withstand extreme temperatures ranging from -20℃ to 65℃. It could prevent the risks of overheating and ensure the life duration as well as the reliability of the dash camera.
Built in microphone and speaker to capture high quality audio clear without distortion. Don’t want to record voice? One press to turn microphone off.
Wide angle of both front and rear cameras helps you capture more details in the events.
OBD Cable Dash Cam Installation| Mercylion A980
Product Specification
| Model No | A980-1CH-2K | A980-1CH-4K | A980-2CH |
|---|---|---|---|
|
Channel |
Front Cam only | Front Cam only | Front and Rear Cam |
|
Processor |
NT96675 | NT96565 | NT96565 |
|
Screen |
/ | / | / |
|
Lens Material |
2G4P+IR waterproof | 2G4P+IR waterproof | 2G4P+IR waterproof |
|
Aperture |
F1.4 | F1.5 | F1.4 |
| Lens Angle | diagonal 145° | diagonal 145° | diagonal 145° |
| Max Resolution | 2560*1600 | 3840*2160 | 2560*1440 |
| Encoding Type | H.264 | H.264 | H.264 |
| Video Format | H.264encoding， TF format storage | H.264 encoding, MP4 format storage | H.264encoding, TF format storage |
| Effective Pixel | 5 million pixel | 8 million pixel | 2 million pixel |
| Picture Format | JPEG | JPEG | JPEG |
| Recording Mode | 1min/3mins/5mins/loop recording | 1min／3mins／5mins／Loop recording | 1min/3mins/5mins/loop recording |
| Storage | TF card（Class 10 or above, max support 512G) | TF card (Class 10 or above, maximum support 512G) | TF card（Class 10 or above, max support 512G) |
| Support,external GPS optional | Supported, external GPS optional | Not Support | |
| Wireless Connection | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac |
| Collision Detection | Triaxial accelerometer | Three-axis accelerometer | Triaxial accelerometer |
| Horn | 8Ω1W | 8Ω1W | 8Ω1W |
| Parking Monitoring | Start recording 20s after collision | Recording starts 15 seconds after collision | Start recording 20s after collision |
| Start-up Time | About 10 Seconds | About 10 seconds | About 10 Seconds |
| Working Voltage | DC12V | DC12V | DC12V |
| Working Currency | 250MA ±10MA | 250MA ±10MA | 250MA ±10MA |
| Operating Temperature | -20℃-65℃ | -20℃-65℃ | -20℃-65℃ |
| Storage Temperature | -30℃-85℃ | -30℃-85℃ | -30℃-85℃ |

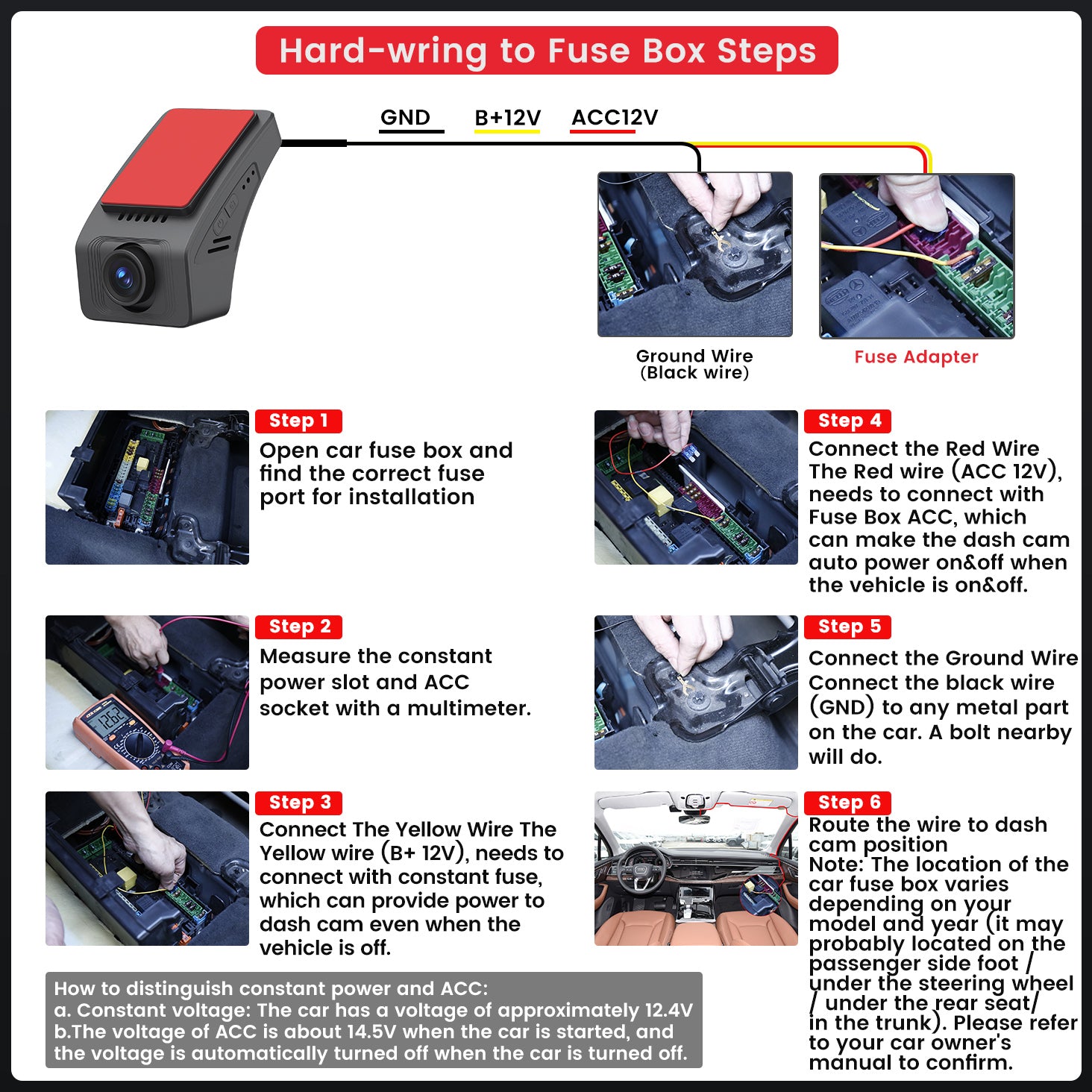

| Front Cam Installation | Plug-and-Play or Hard-wiring Both Support | Plug-and-Play or Hard-wiring Both Support | Hard-wiring from the front cam |

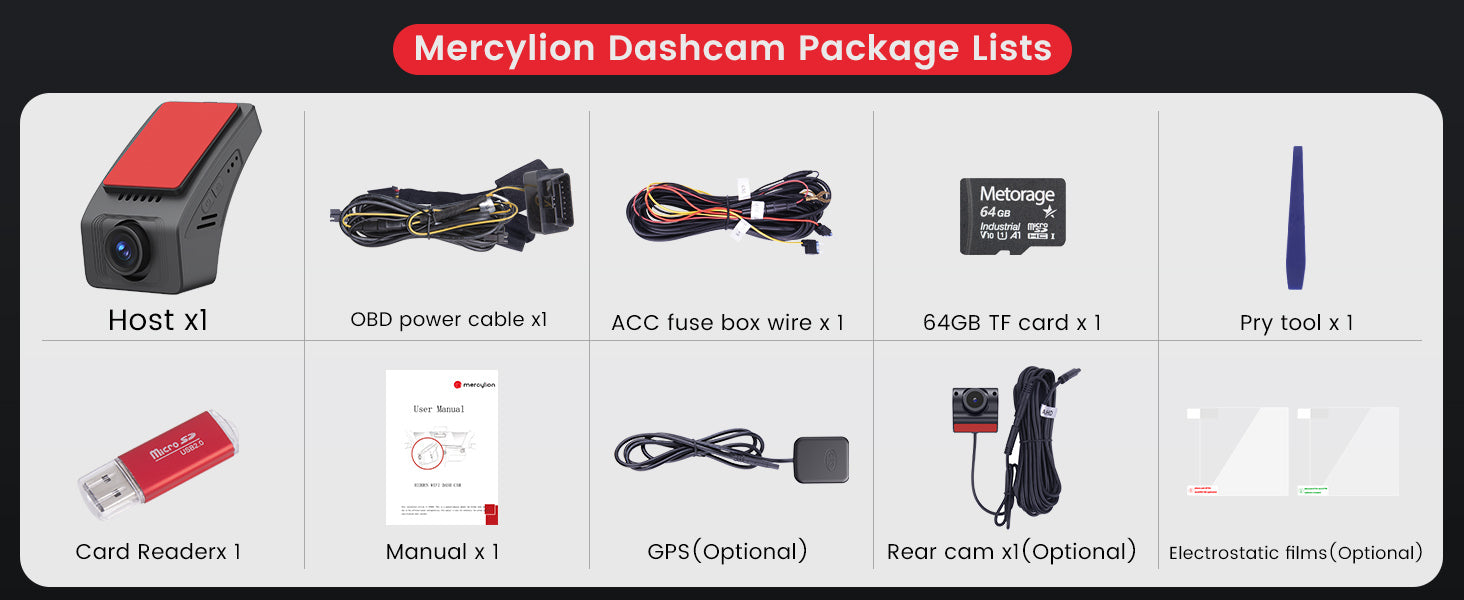

What is in the Box
